| Part No. | Series | Inductance (μH) | Size code | Marking | Datasheet |
|---|---|---|---|---|---|

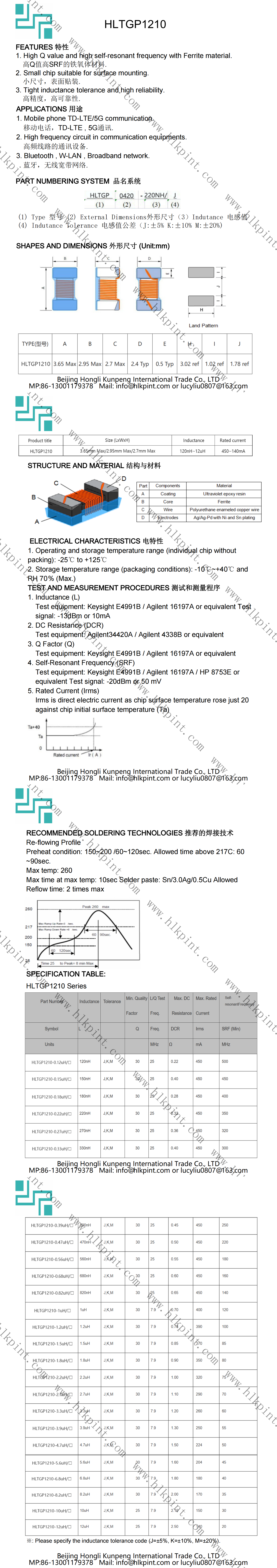

| HLTGP1210-0.27uH/□ | HLTGP1210 | 270nH | 3.65mm Max/2.95mm Max/2.7mm Max(LxWxH) |  |
|
| HLTGP1210-0.22uH/□ | HLTGP1210 | 220nH | 3.65mm Max/2.95mm Max/2.7mm Max(LxWxH) |  |
|
| HLTGP1210-0.18uH/□ | HLTGP1210 | 180nH | 3.65mm Max/2.95mm Max/2.7mm Max(LxWxH) |  |
|
| HLTGP1210-0.15uH/□ | HLTGP1210 | 150nH | 3.65mm Max/2.95mm Max/2.7mm Max(LxWxH) |  |
|
| HLTGP1210-0.12uH/□ | HLTGP1210 | 120nH | 3.65mm Max/2.95mm Max/2.7mm Max(LxWxH) |  |
|

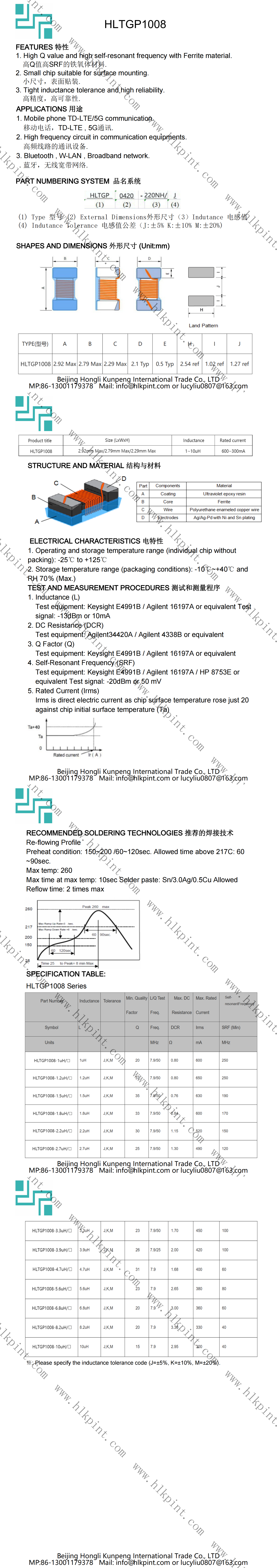

| HLTGP1008-10uH/□ | HLTGP1008 | 10uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-8.2uH/□ | HLTGP1008 | 8.2uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-6.8uH/□ | HLTGP1008 | 6.8uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-5.6uH/□ | HLTGP1008 | 5.6uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-4.7uH/□ | HLTGP1008 | 4.7uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-3.9uH/□ | HLTGP1008 | 3.9uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-3.3uH/□ | HLTGP1008 | 3.3uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-2.7uH/□ | HLTGP1008 | 2.7uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-2.2uH/□ | HLTGP1008 | 2.2uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-1.8uH/□ | HLTGP1008 | 1.8uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-1.5uH/□ | HLTGP1008 | 1.5uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-1.2uH/□ | HLTGP1008 | 1.2uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP1008-1uH/□ | HLTGP1008 | 1uH | 2.92mm Max/2.79mm Max/2.29mm Max(LxWxH) |  |
|
| HLTGP0805-68uH/□ | HLTGP0805 | 68uH | 2.29mm Max/1.73mm Max/1.55mm Max(LxWxH) |  |
|
| HLTGP0805-47uH/□ | HLTGP0805 | 47uH | 2.29mm Max/1.73mm Max/1.55mm Max(LxWxH) |  |
